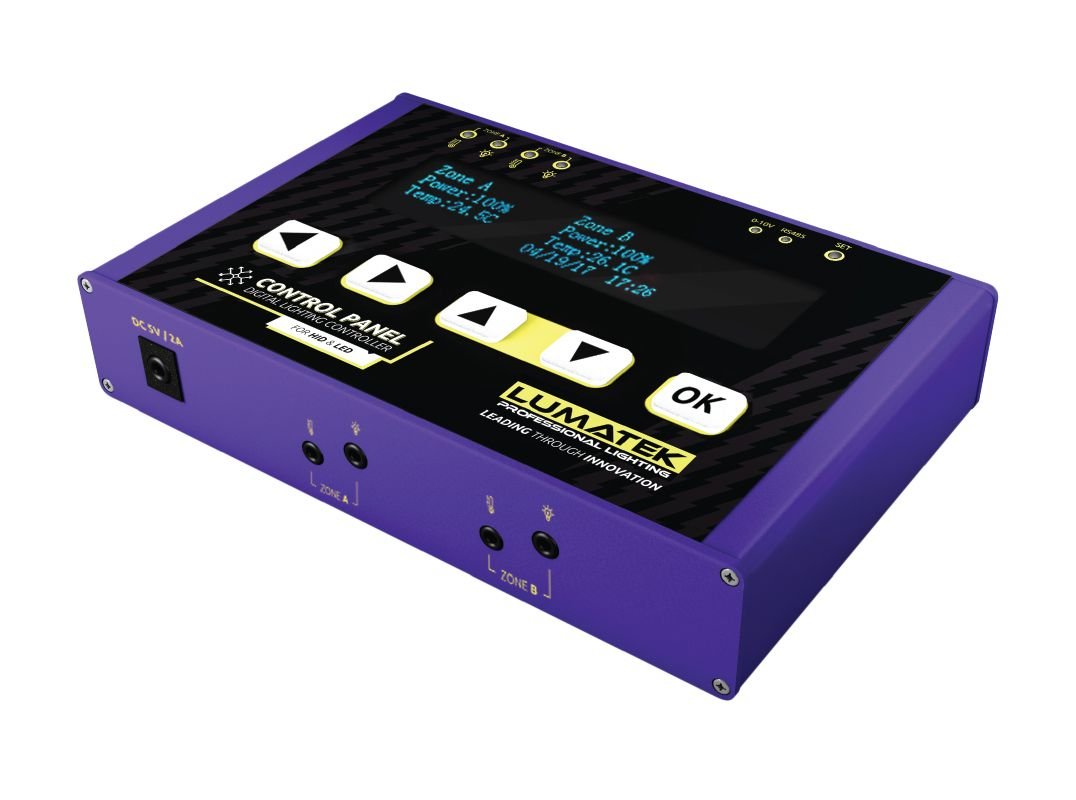

LUMATEK Control Panel PLUS

TECHNICAL SPECIFICATIONS​

PRODUCT CODE: LUMM0002

POWER: AdaptEr 100 – 240V AC 50/60Hz – DC 5V/2A
SUITABLE FOR BALLASTERS: 315W, 600W, 630W, 1000W
SUITABLE FOR LED DRIVERS 90W, 465W, 600W, 1000W
DIMABLE POWER RANGE: 10% – 115%
POWER REGULATION PRECISION: 1%
TEMPERATURE CONTROLLED SAFETY ATTENUATION RANGE: 0ºC-40ºC
TEMPERATURE CONTROLLED SAFETY SWITCHING RANGE: 10ºC-50ºC
EOD / EON TREATMENT TIME: 0-30 min
SIZES: 1128 x 80 x 25 mm

Control panel for up to 400 HID ballasts or 100 LED drivers

Two channel (Zona A y Zona B)

Maximum number of ballasts / controllers per zone: 200 (RS485) HID or 50 (0-10 V) LEDs

Total number of ballasts / drivers per controller: 400 (RS485) HID or 100 (0-10V) LED

24-hour light change and timing

Temperature sensor monitoring and control

Attenuation control (1% increments)

Safety automation and temperature control

Simulate sunrise and sunset to reduce stress on plants

Light intensity automation

Items included:

1 x Lumatek Plus Control Panel

1 x power adapter and cable

2 x 5m temperature sensor cable

2 x 5m HID control link cable

2 x LED control link cable
